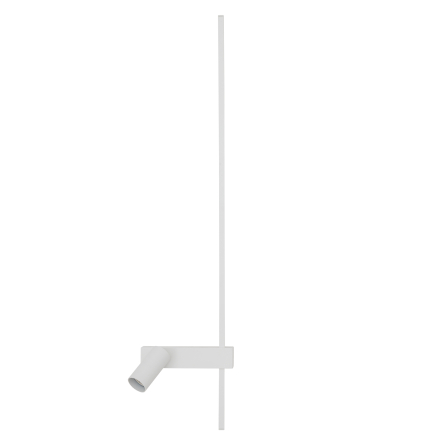

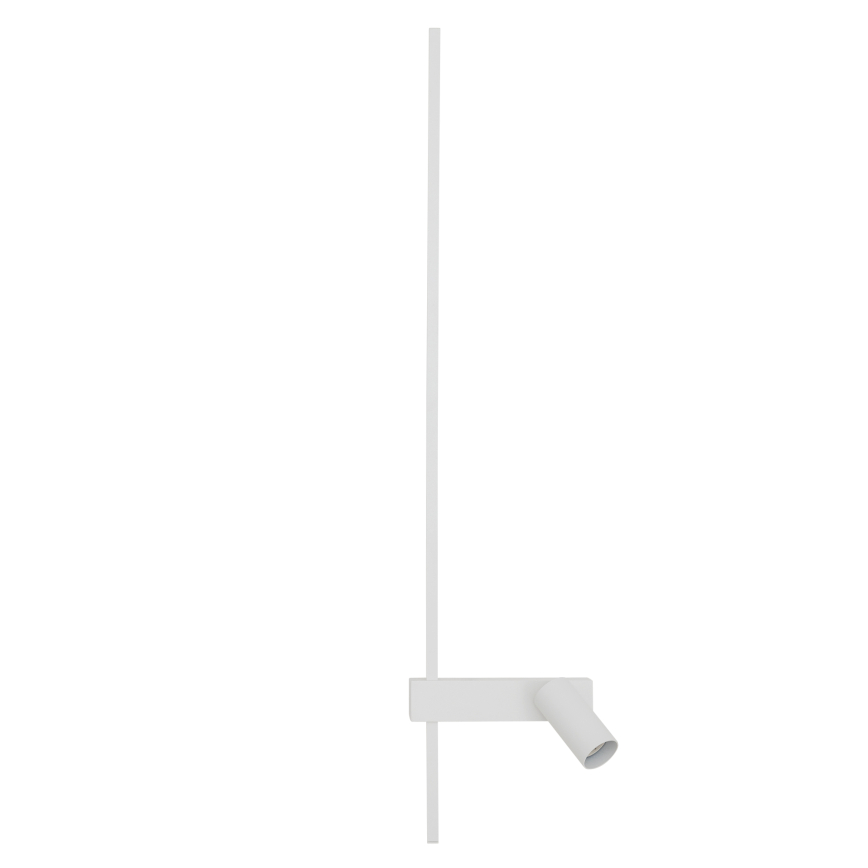

Wall lamp EASY LED RIGHT

Product description

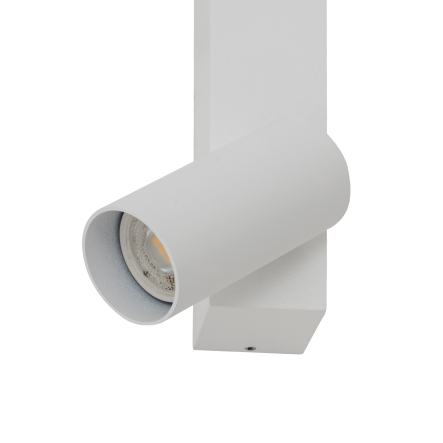

The lamp has an integrated (built-in) light source and an interchangeable one, i.e. GU10 R35, which must be purchased separately. We recommend our GU10 R35 light sources, available in two colour temperatures: warm (3000K) i.e. 10230 – click here and cold (4000K) tj.10231 – click here. It is also possible to use GU10 light sources from other suppliers, brands or manufacturers with a diameter of 3.5 cm (GU10 R35).

Symbol

11580
Light source

GU10 R35 and LED integrated
Maximum wattage

GU10 R35: 1x10W only LED; LED: 1x11W LED
Light sources type

Replaceable and integrated
Lamp includes source of light

Replaceable NO, integrated YES
Number of light sources

2
Number of light sections

2
Section division

1/1
IP

IP20
Lifetime

30000h

Height

18 cm
Lenght

80 cm
Distance from wall

14 cm
Ceiling cup height

18 cm
Ceiling cup width

4 cm
Soffit ceiling length

5 cm

Leading material

Aluminum
Complementary material I

Painted steel
Complementary material II

Plastic PC
Leading colour

White
Paint symbol from swatch box

P004 RAL 9003

Colour temperature

3000K
Flux

450 lm
Beam angle

100 °
CRI

>90
Frequency

50/60 Hz
Voltage

~220-230 V
Electrical security class

I
Assembly method

Bracket
