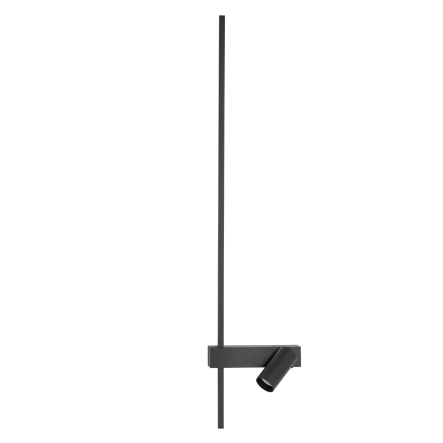

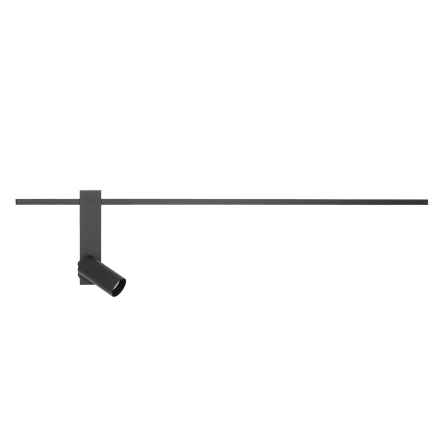

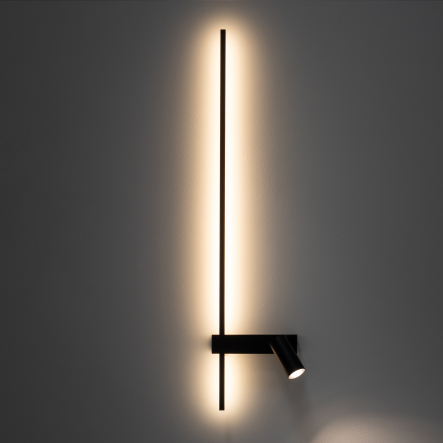

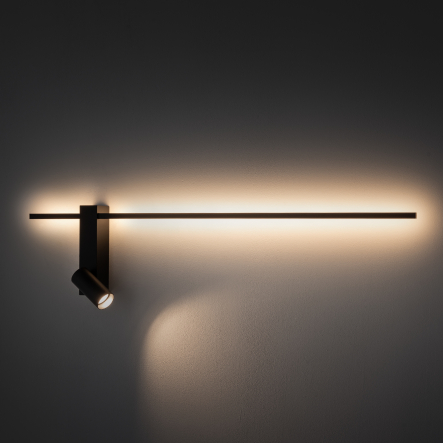

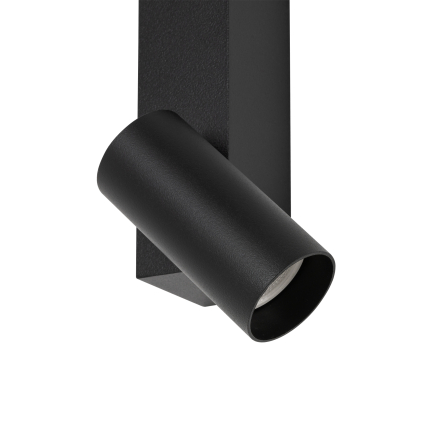

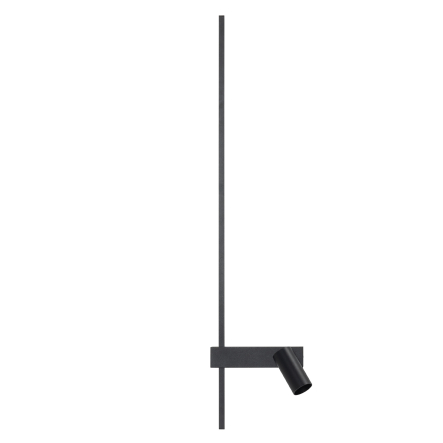

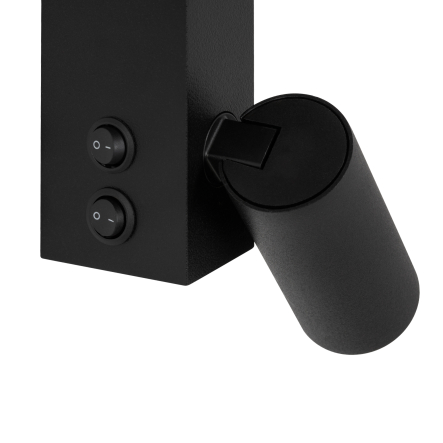

Wall lamp EASY LED LEFT


Product description

  • Symbol
    11425
  • Light source
    GU10 R35, LED
  • Maximum wattage
    1x10W only LED, 1x11W LED
  • Light sources type
    Replaceable / Integrated
  • Lamp includes source of light
    Yes
  • Number of light sources
    2
  • Number of light sections
    2
  • Section division
    1/1
  • IP
    IP20
  • Lifetime
    30000h

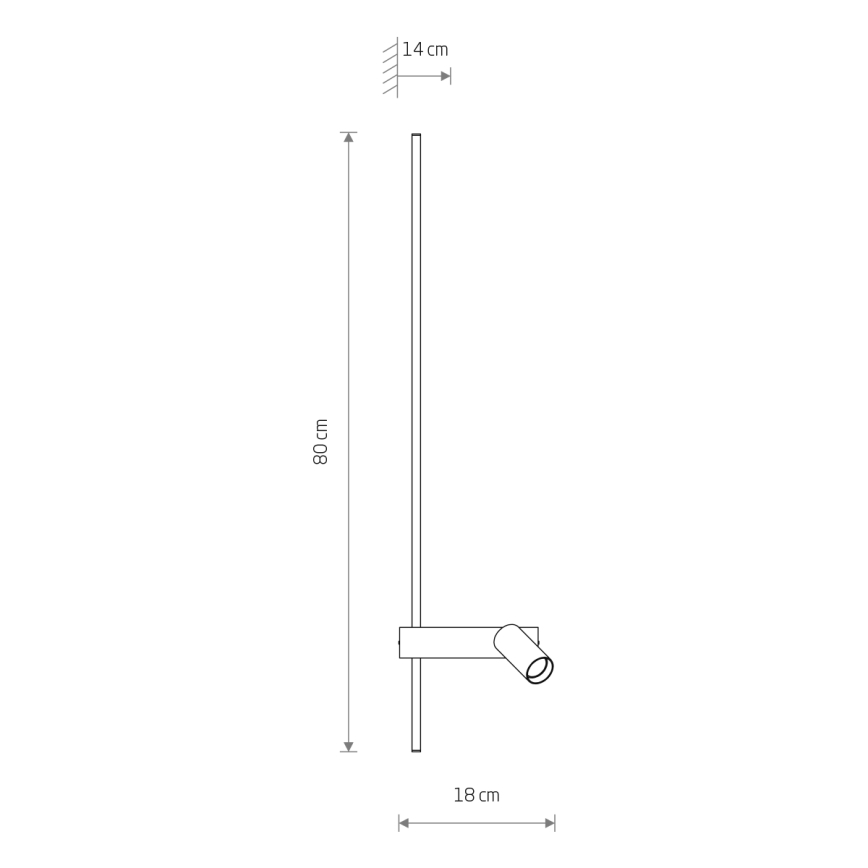

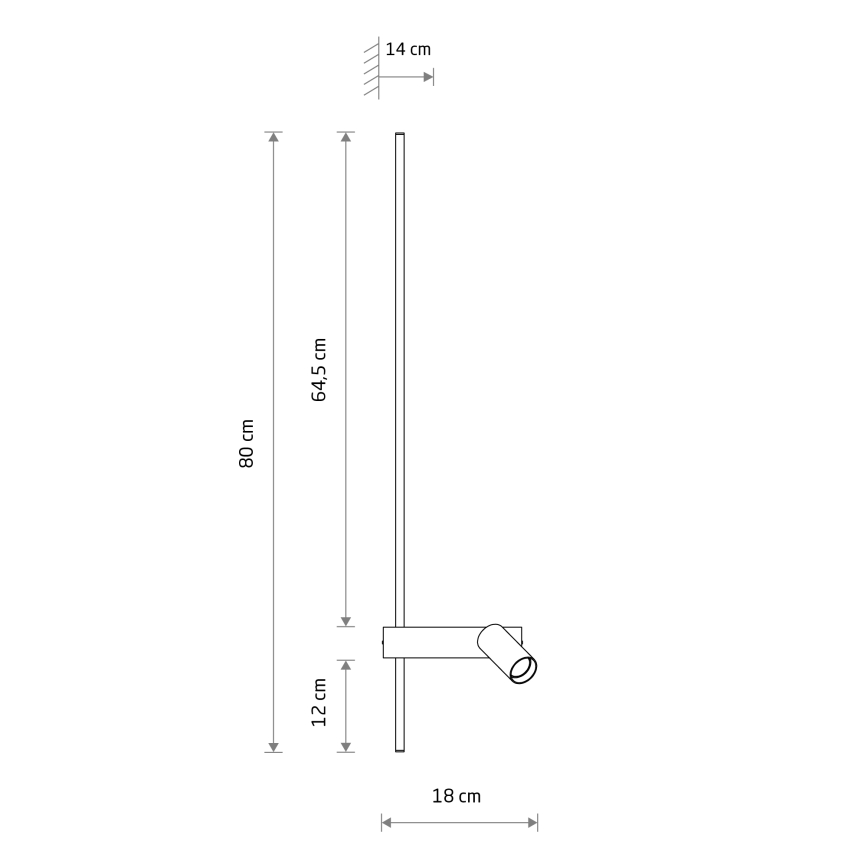

  • Height
    18 cm
  • Lenght
    80 cm
  • Distance from wall
    14 cm
  • Ceiling cup height
    18 cm
  • Ceiling cup width
    4 cm
  • Soffit ceiling length
    5 cm
  • Leading material
    Aluminum
  • Complementary material I
    Painted steel
  • Complementary material II
    Plastic PC
  • Leading colour
    Black
  • Paint symbol from swatch box
    P013 RAL 9005
  • Colour temperature
    3000K
  • Flux
    380 lm
  • Beam angle
    100 °
  • CRI
    >90
  • Frequency
    50/60 Hz
  • Voltage
    ~220-230 V
  • Electrical security class
    I
  • Assembly method
    Bracket
Wall lamp EASY LED LEFT

UK Declaration of conformity

Wall lamp EASY LED LEFT

UK Declaration of conformity

Wall lamp EASY LED LEFT

UK Declaration of conformity

Wall lamp EASY LED LEFT

Declaration of conformity EC

Wall lamp EASY LED LEFT

Declaration of conformity EC

Wall lamp EASY LED LEFT

Declaration of conformity EC

Wall lamp EASY LED LEFT

Assembly instruction

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

UK Declaration of conformity

Wall lamp EASY LED LEFT

UK Declaration of conformity

Wall lamp EASY LED LEFT

UK Declaration of conformity

Wall lamp EASY LED LEFT

Declaration of conformity EC

Wall lamp EASY LED LEFT

Declaration of conformity EC

Wall lamp EASY LED LEFT

Declaration of conformity EC

Wall lamp EASY LED LEFT

Assembly instruction

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

Wall lamp EASY LED LEFT

Catalogue card

This section is available to logged-in users. It is designed for projects to increase the quality and efficiency of customer service.

No account? Register now! Register
  • Height
    18 cm
  • Lenght
    80 cm
  • Distance from wall
    14 cm
  • Ceiling cup height
    18 cm
  • Ceiling cup width
    4 cm
  • Soffit ceiling length
    5 cm
    • Leading material
      Aluminum
    • Complementary material I
      Painted steel
    • Complementary material II
      Plastic PC
    • Leading colour
      Black
    • Paint symbol from swatch box
      P013 RAL 9005
    • Colour temperature
      3000K
    • Flux
      380 lm
    • Beam angle
      100 °
    • CRI
      >90
    • Frequency
      50/60 Hz
    • Voltage
      ~220-230 V
    • Electrical security class
      I
    • Assembly method
      Bracket

    Downloads:

    Wall lamp EASY LED LEFT

    UK Declaration of conformity

    Wall lamp EASY LED LEFT

    UK Declaration of conformity

    Wall lamp EASY LED LEFT

    UK Declaration of conformity

    Wall lamp EASY LED LEFT

    Declaration of conformity EC

    Wall lamp EASY LED LEFT

    Declaration of conformity EC

    Wall lamp EASY LED LEFT

    Declaration of conformity EC

    Wall lamp EASY LED LEFT

    Assembly instruction

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    UK Declaration of conformity

    Wall lamp EASY LED LEFT

    UK Declaration of conformity

    Wall lamp EASY LED LEFT

    UK Declaration of conformity

    Wall lamp EASY LED LEFT

    Declaration of conformity EC

    Wall lamp EASY LED LEFT

    Declaration of conformity EC

    Wall lamp EASY LED LEFT

    Declaration of conformity EC

    Wall lamp EASY LED LEFT

    Assembly instruction

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    Wall lamp EASY LED LEFT

    Catalogue card

    This section is available to logged-in users. It is designed for projects to increase the quality and efficiency of customer service.

    No account? Register now! Register

    Other products from the collection

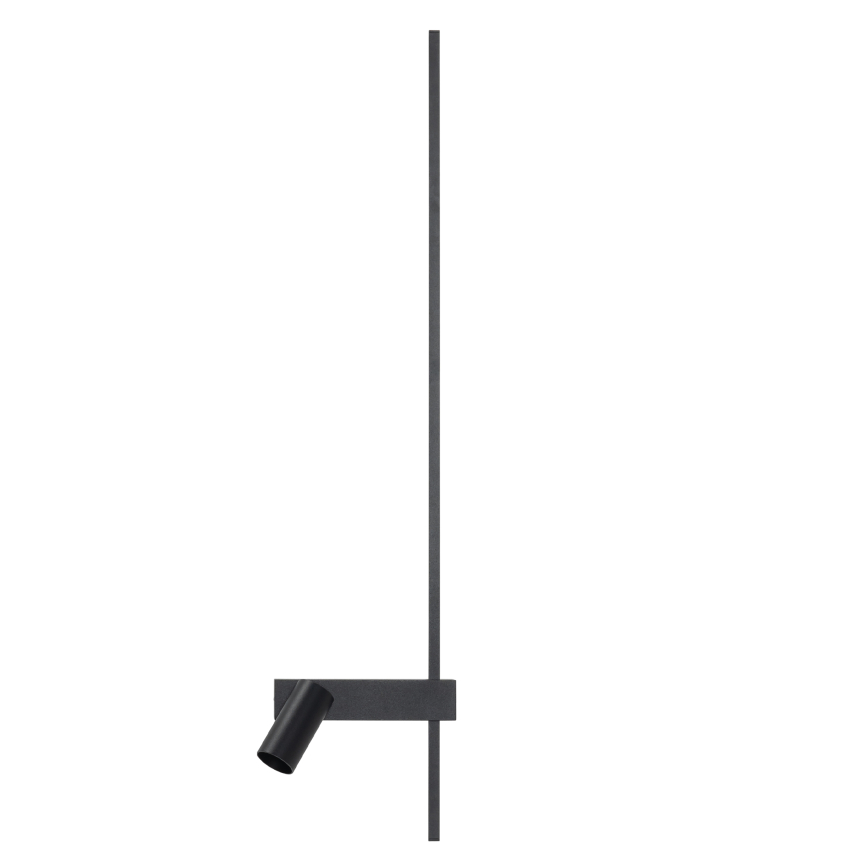

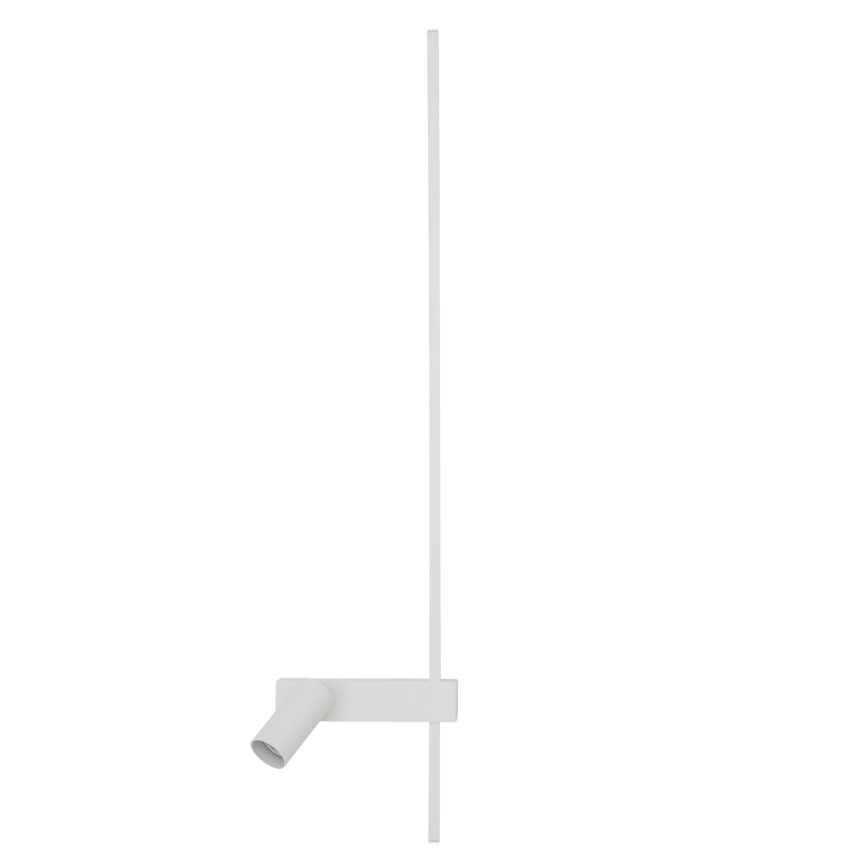

    Wall lamp EASY LED RIGHT
