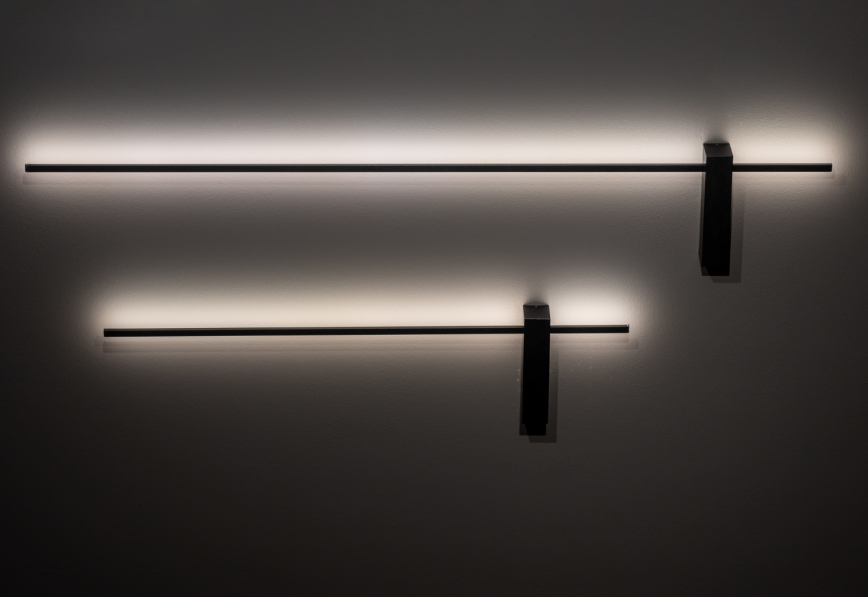

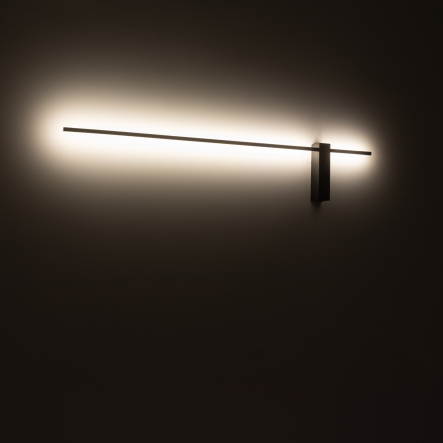

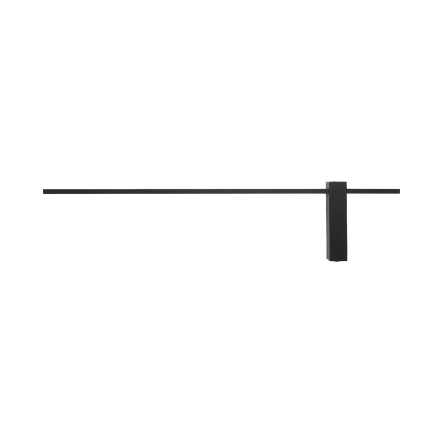

Wall lamp MOTIVE LED L


Product description

  • Symbol
    10313
  • Light source
    LED
  • Maximum wattage
    16W
  • Light sources type
    Integrated
  • Lamp includes source of light
    Yes
  • IP
    IP20
  • Lifetime
    30000h

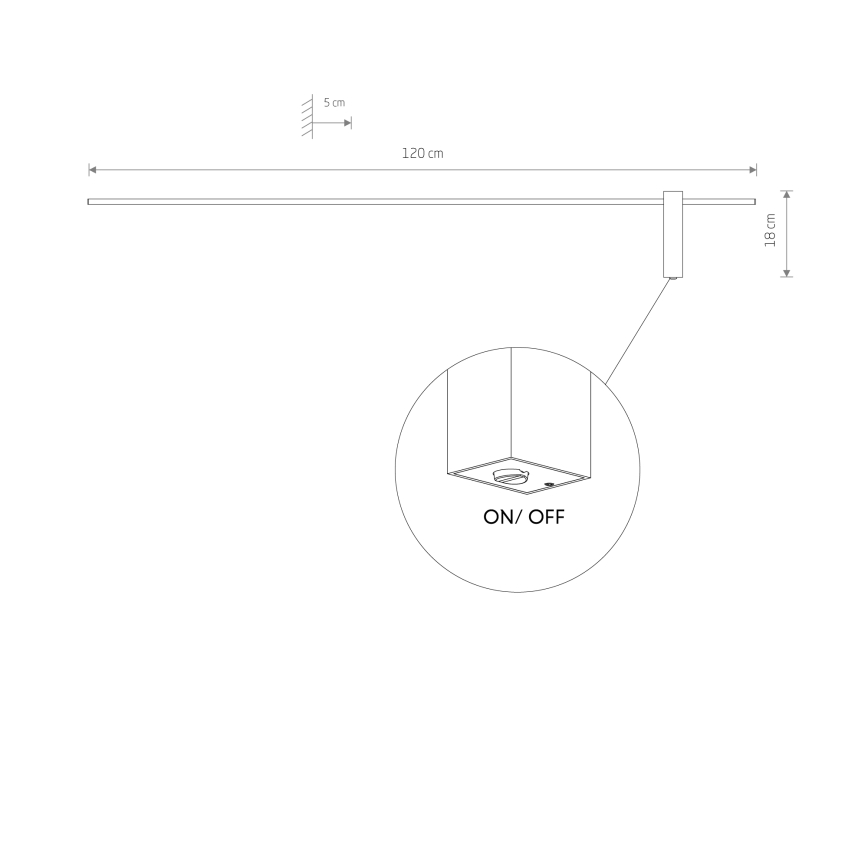

  • Height
    18 cm
  • Lenght
    120 cm
  • Distance from wall
    5 cm
  • Ceiling cup height
    18 cm
  • Ceiling cup width
    4 cm
  • Soffit ceiling length
    5 cm
  • Leading material
    Painted aluminum
  • Complementary material I
    Plastic PC
  • Leading colour
    Black
  • Paint symbol from swatch box
    P013 RAL 9005
  • Complementary colour I
    White
  • Colour temperature
    3000K
  • Flux
    540 lm
  • Beam angle
    100 °
  • CRI
    >90
  • Frequency
    50/60 Hz
  • Voltage
    ~220-230 V
  • Electrical security class
    I
  • Assembly method
    Direct assembly
  • v.1
  • The product includes a mounting kit
    No
