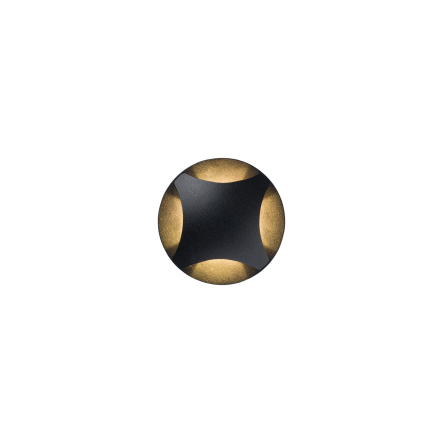

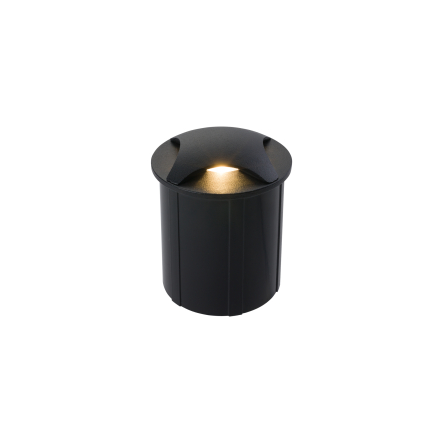

Lamp to built in PAT LED


Product description

  • Symbol
    8162
  • Light source
    LED
  • Maximum wattage
    3W
  • Light sources type
    Integrated
  • Lamp includes source of light
    Yes
  • IP
    IP65
  • Lifetime
    10000h
  • Comments
    Power Factory = 0,5

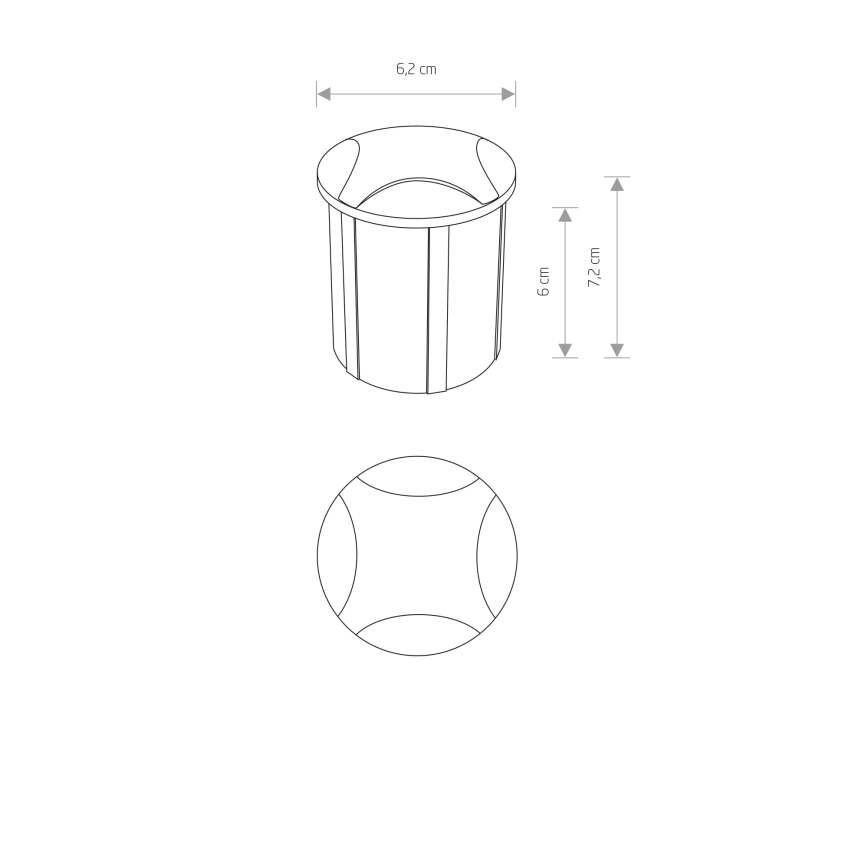

  • Height
    7.2 cm
  • Width
    6.2 cm
  • Hole shape
    Round
  • Hole dimensions
    5,6 / 6 cm
  • Leading material
    Aluminum
  • Complementary material I
    Plastic PC
  • Leading colour
    Black
  • Colour temperature
    3000K
  • Flux
    12 lm
  • Beam angle
    25 °
  • CRI
    ≥80
  • Frequency
    50/60 Hz
  • Voltage
    ~220-230 V
  • Electrical security class
    I
  • Assembly method
    Recessed assembly
