Built-in lamps

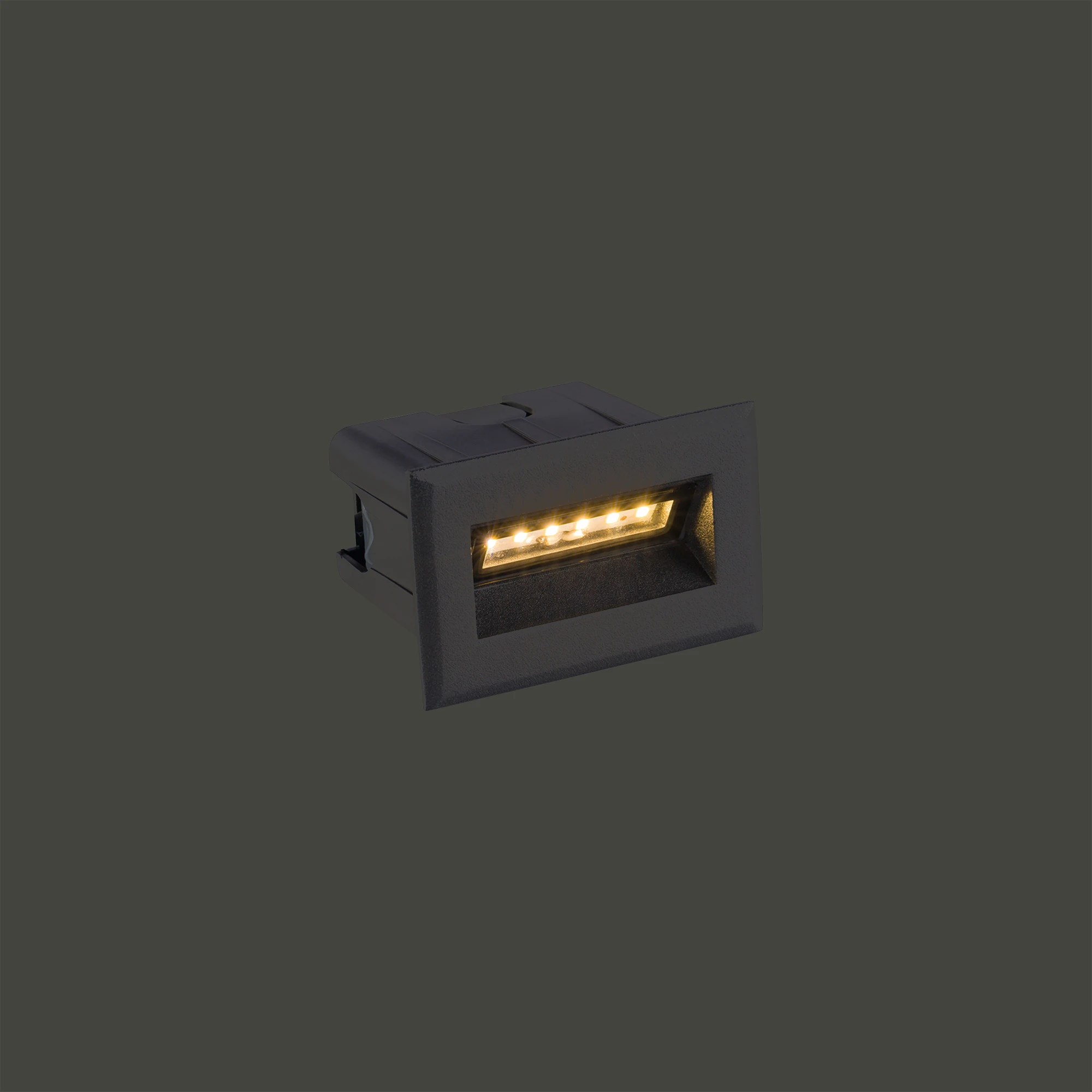

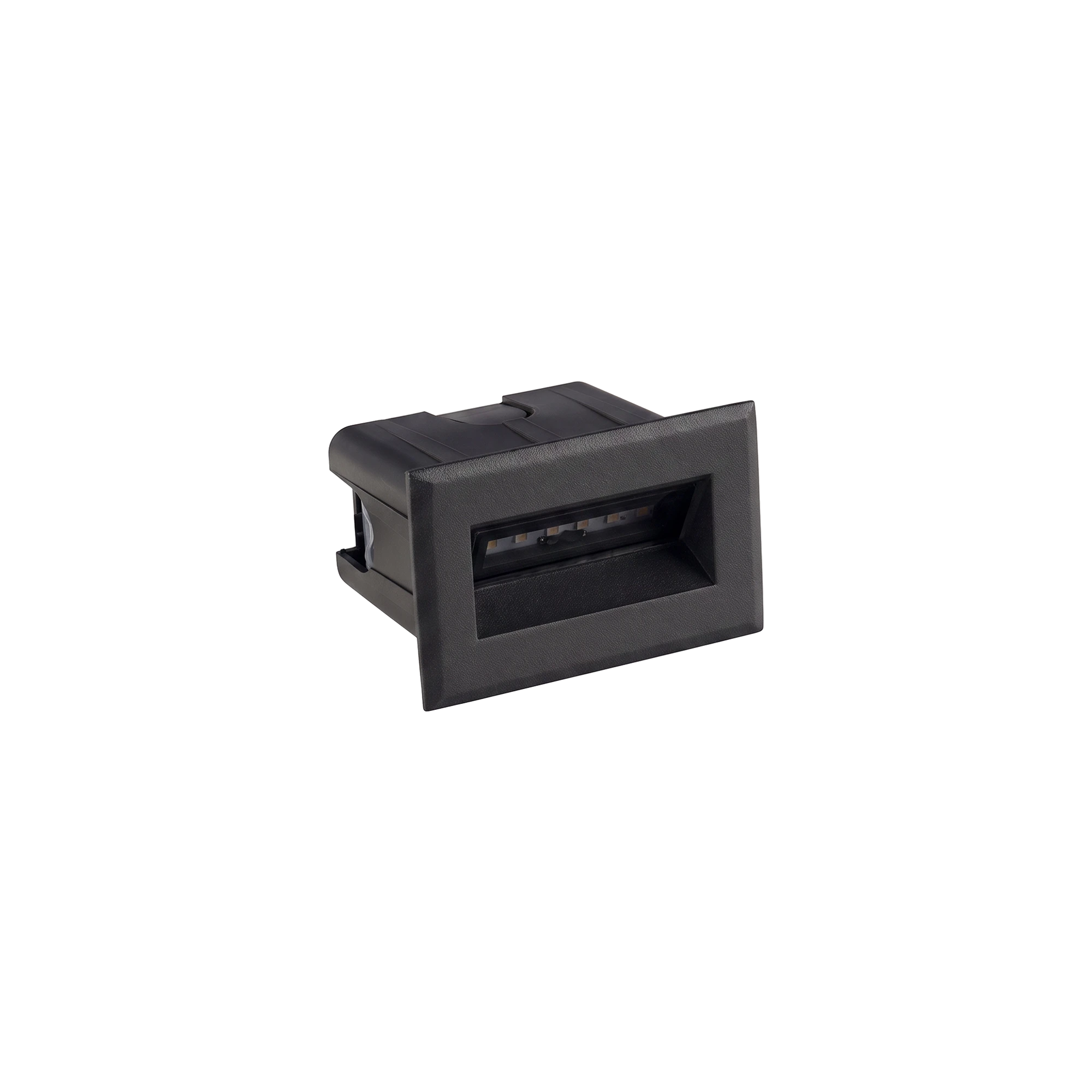

BAY LED

Symbol: 8164

collection: BAY LED

They may come in handy

WATERPROOF Y CONNECTOR IP68

Light source type

LED integrated

Max power

3 W

Light sources

Integrated

Includes light source

Yes

IP

IP65

Lifetime

10000h

Energy efficiency class

G

Country of origin

Made in PRC

Height

5,5 cm

Width

8,5 cm

Cut-out dimensions

7,4-4,4 x6 cm

Cut-out shape

Rectangular

Main material

Painted aluminum

Additional materials

Plastic PC

Main colour

Black

Colour temperature

3000 K

Luminous flux

200 lm

Angle

70 °

CRI

≥80

Frequency

50/60 Hz

Voltage

~220-230 V

Protection class

I

Mounting method

Recessed assembly

Net weight

0.18 kg

Gross weight

0.21 kg

Number of packages

1

Package

1

Height

9 cm

Length

7 cm

Width

6 cm

Package volume

0,4 dm³

Package contents

oprawa, instrukcja, instrukcja montażowa

Catalog card

Assembly instructions

Model 3D DWG

Model 2D DWG

Model 3D 3DS

Model 3D FBX

Model 3D IGS

Model 3D MTL

Model 3D OBJ

Model 3D SKP

Model 3D STL

LDT Photometric Data

IES Photometric Data

EU Declaration of Conformity

UKCA Declaration of Conformity

Energy label

We have more

BAY LED

Built-in lamps

You may also like:

Built-in lamps

STEP LED

Built-in lamps

INA

Built-in lamps

CIRCLET LED

Built-in lamps

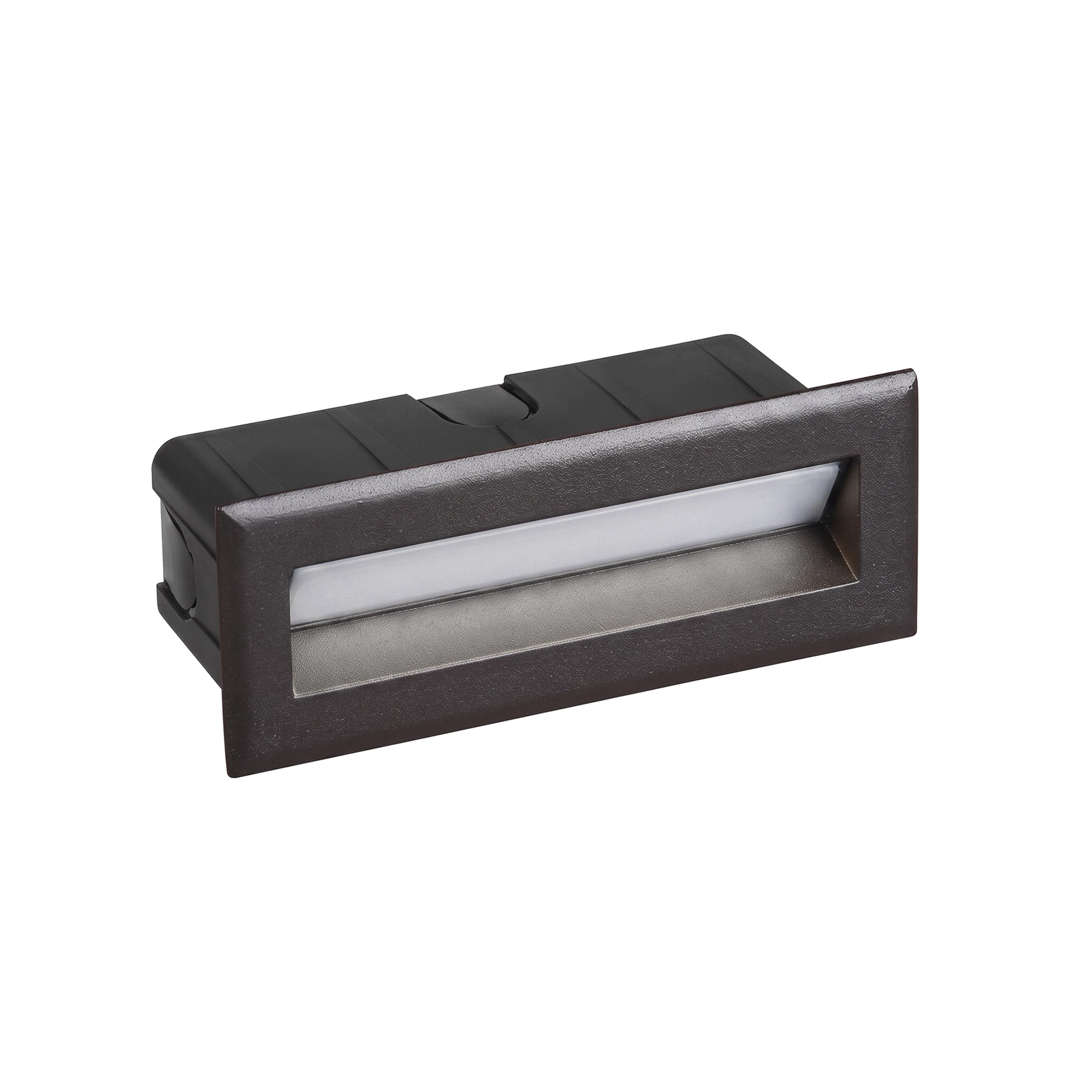

BAY LED
